Built for real-time visibility, the Bluebird S10 RFID combines powerful mobile computing with advanced UHF RFID performance in a single, ergonomic device.

The Bluebird S10 RFID is a globally-proven, all-in-one UHF RFID handheld reader engineered to deliver maximum operational efficiency with a minimal upfront investment. It's a powerful tool for industries that require real-time visibility in logistics, inventory control, and asset management, providing a fast return on investment (ROI).



Key Features Specifications Download S10 RFID Datasheet Download S10 Accessory Guide Contact Us

Additional mobile device options:

S20 S50 S70 S70 Explosion Protection EK430 RFR901

Key Features

1

Lightweight, Ergonomic Design
Its ultra-lightweight design, weighing in at a remarkably light 613.8g, is significantly lighter than competitive products, reducing the burden on workers throughout the day.
2
Anti-Slip Technology
Special design applied to the trigger housing and handle base prevents slippage, simultaneously ensuring job safety and data security.
3
Unmatched RFID Reading Performance
Offers outstanding performance, read rates over 1,300 tags per second, and enables tag detection at distances over 18 meters.

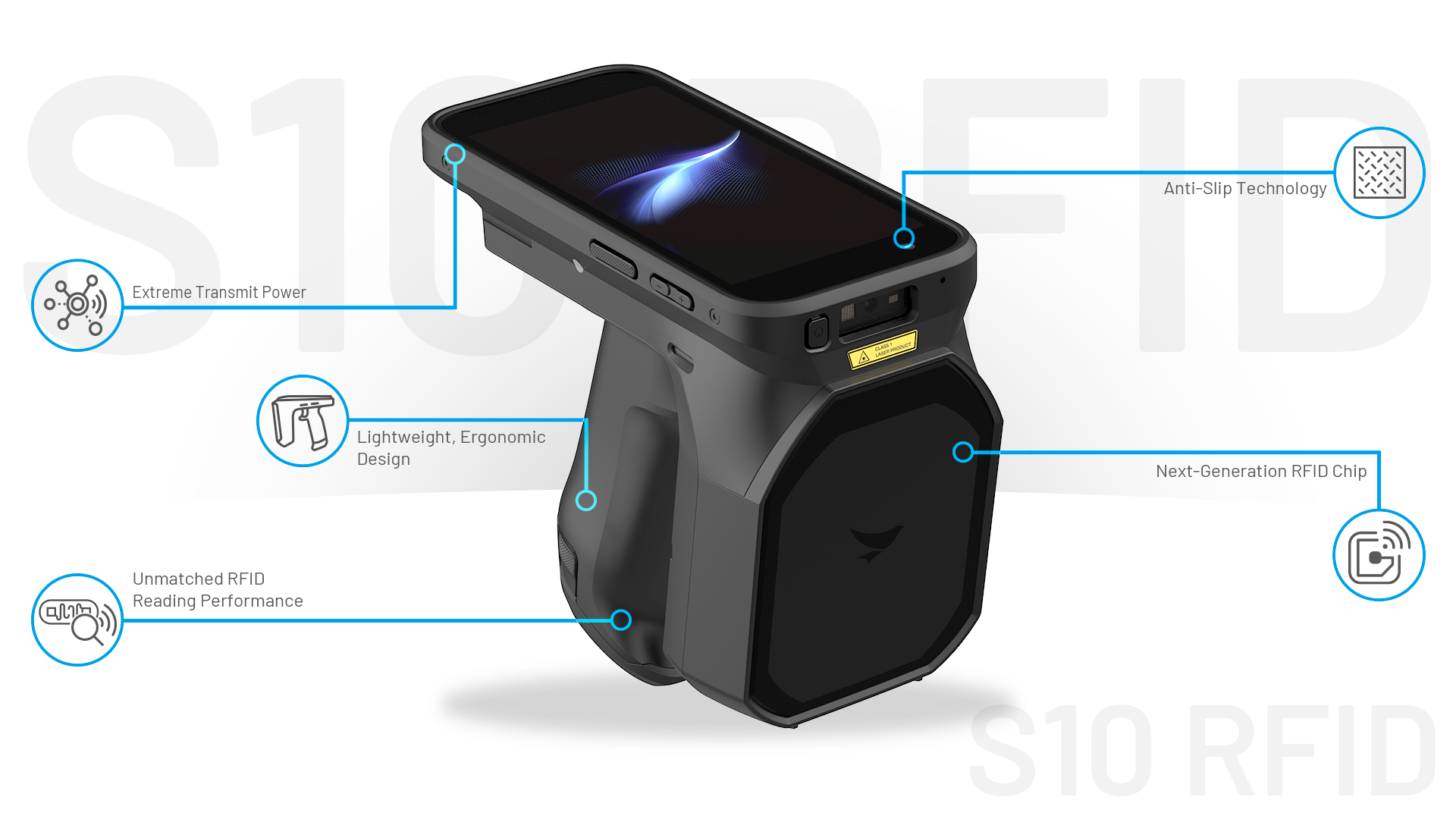

S10 RFID Key Features

4
Extreme Transmit Power

By maintaining an Extreme Transmit Power of up to 30dBm, the S10 RFID guarantees unwavering, stable RFID performance even in the most demanding wireless frequency conditions.
5
Next-Generation RFID Chip
Equipped with the powerful E710 RFID Impinj chip, the S10 RFID fully supports EPC Class1 Gen 2 / ISO 18000-63 protocols, enabling rapid and precise tag recognition capabilities.

Specifications

CPUQCM SM6225 OctaCore up to 2.4GHz
PowerExtended: 7,000mAh (Default)
Dimensions133.6 x 85.4 x 144.5 mm
Weight613.8g
Display5.5" HD (1440 x 720)
Drop Spec5 ft./ 1.5 m drop to tile over concrete per MIL-STD 810G across operating temperature
Tumble Spec600 tumbles, 1.6 ft./0.5 m

RFID Performance

Standards SupportedEPC Class 1 Gen 2, EPC GEN2 V2, Gen2X
Fastest Read Rate1,300+ Tags/sec
Nominal Read Range13+ m / 42.65+ ft
Power Output
1W = 30dBm
2W = 33dBm		US : 5-35dBm (EIRP)
EU : 5-33dBm (ERP)
EU Upper : 5-33dBm (ERP)
JP : 5-33dBm (EIRP)
Frequency Range / RF OutputUS : 902-928 MHz
EU : 865-868 MHz; 916.3, 917.5, and 918.7MHz
JP : 916-921 MHz (w LBT)

* The product specifications may vary depending on the version (sub-model) and configuration of the product. Please contact your local representative for more information.

Download S10 RFID Datasheet Download S10 Accessory Guide

Applications

The Bluebird S10 is optimized for a broad range of industry scenarios.



Retail

Warehouse
& Logistics
Manufacturing

Healthcare &
Public Institutions
